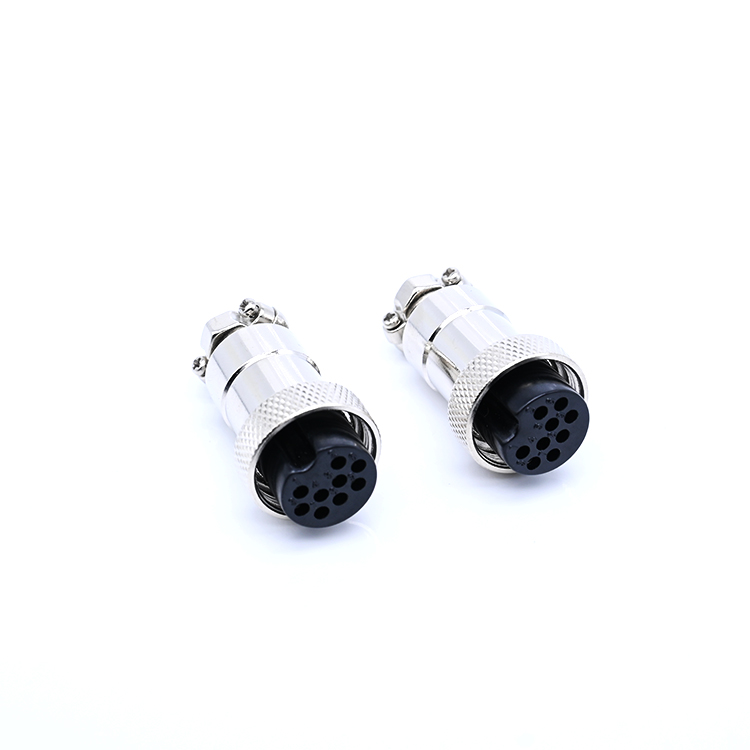

Aviation connectors GX19 9Pin Female
Aviation connector application scenarios are rich and varied, covering aerospace, military, industrial control, transport, new energy and other fields.
With its excellent performance for all kinds of electrical equipment to provide a stable, reliable connection.
Number of cores:2pin, 3pin, 4pin, 5pin, 6pin, 7pin, 8pin, 9pin, 10pin, 12pin, 14pin, 15pin
Customised
0755-27065724
Online consultation
Basic Parameters
Specification: 2-15 core
Shell: zinc alloy, Nickel plated
Knurled nut: zinc alloy, Nickel plated
Contactor: Copper, Silver plated
Insulator: Gum wood core
Plug and Socket Connection: Screwed
Installation Diameter: 16mm
Installation method: thread screwing
Environmental conditions
Ambient temperature: -40°C to +105°C
Atmospheric pressure: up to 4.4kpa
Vibration: frequency of 10-100Hz, acceleration up to 100m/s2
Shock: frequency of 60-80 times / min, acceleration up to 250m / s2
Centrifugal: acceleration up to 250m/s2
Main technical characteristics
Rated voltage: 300V
Rated current: 5A
Contact resistance: not more than 0.005Ω
Insulation resistance: not less than 500MΩ under normal conditions, not less than 20MΩ after constant temperature and heat.
Waterproof rating: IP67
