Products Description

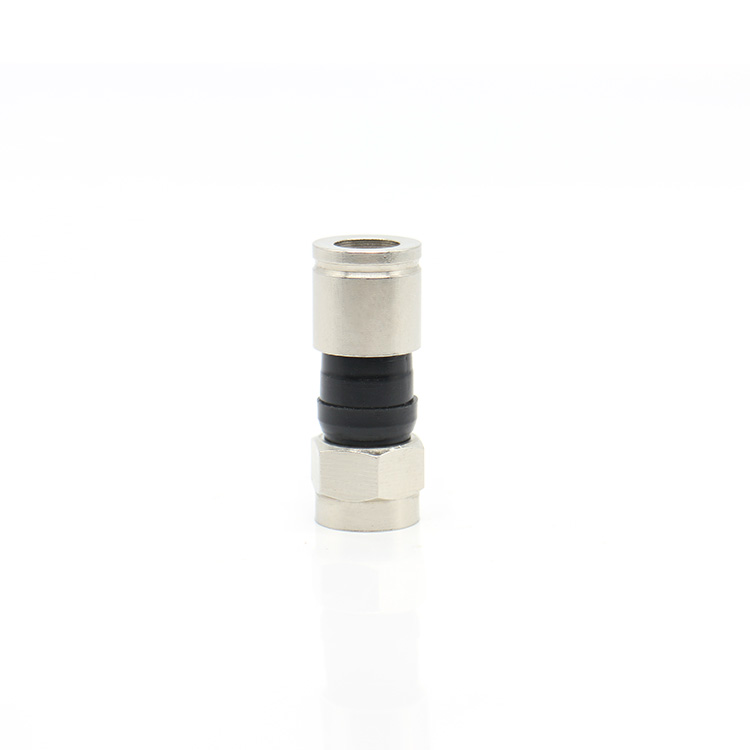

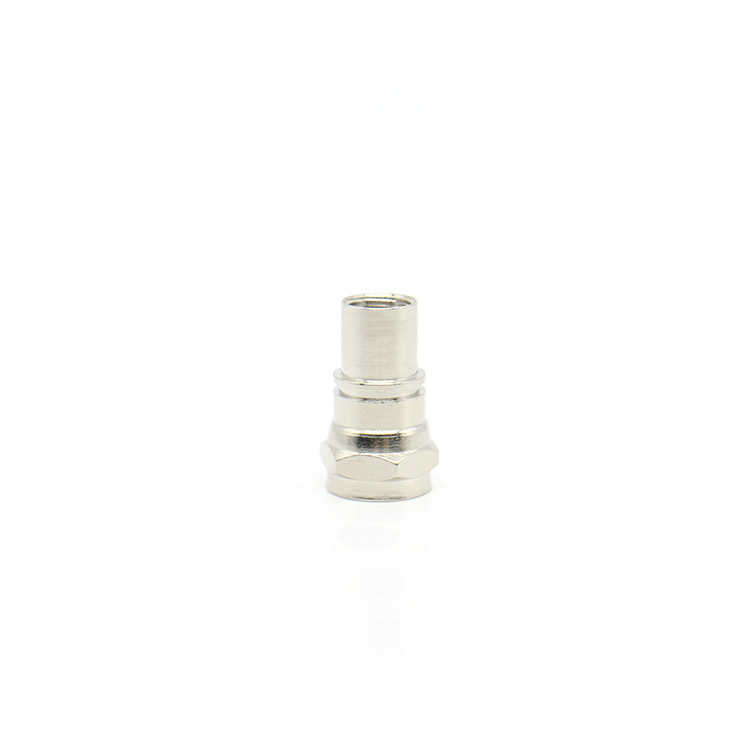

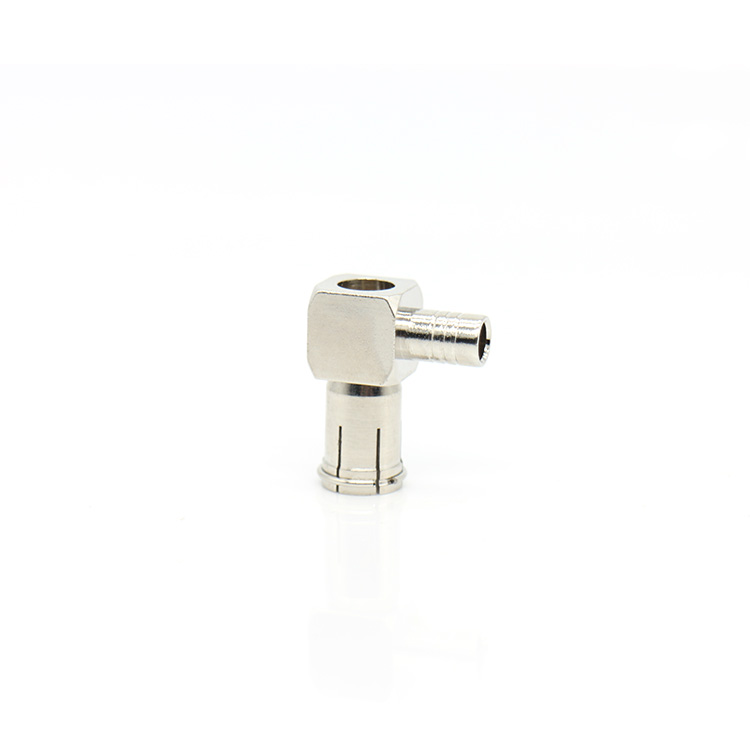

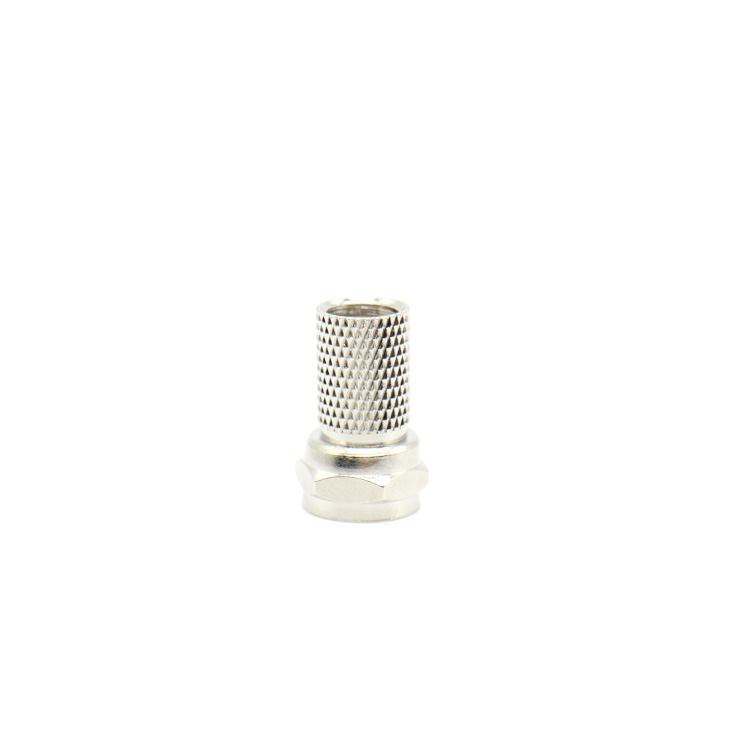

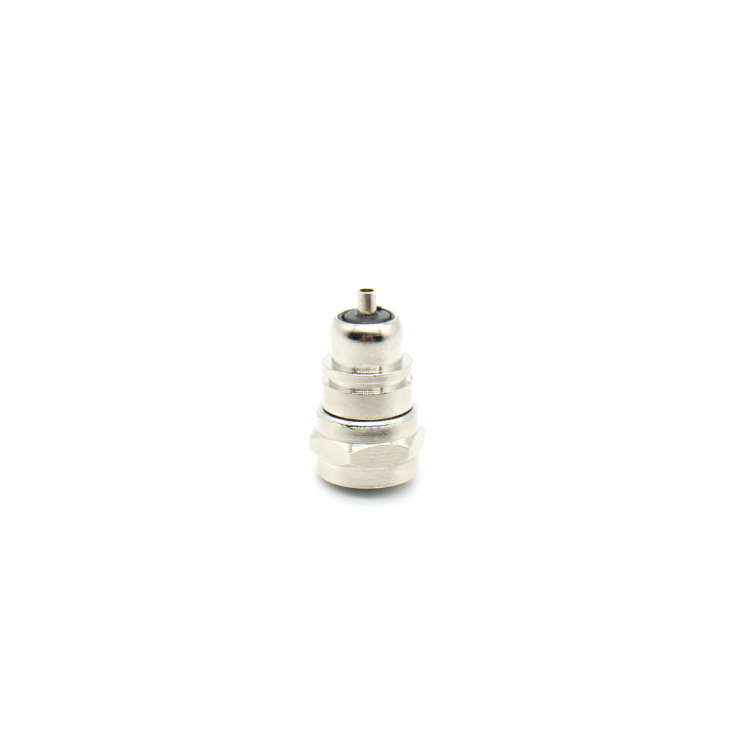

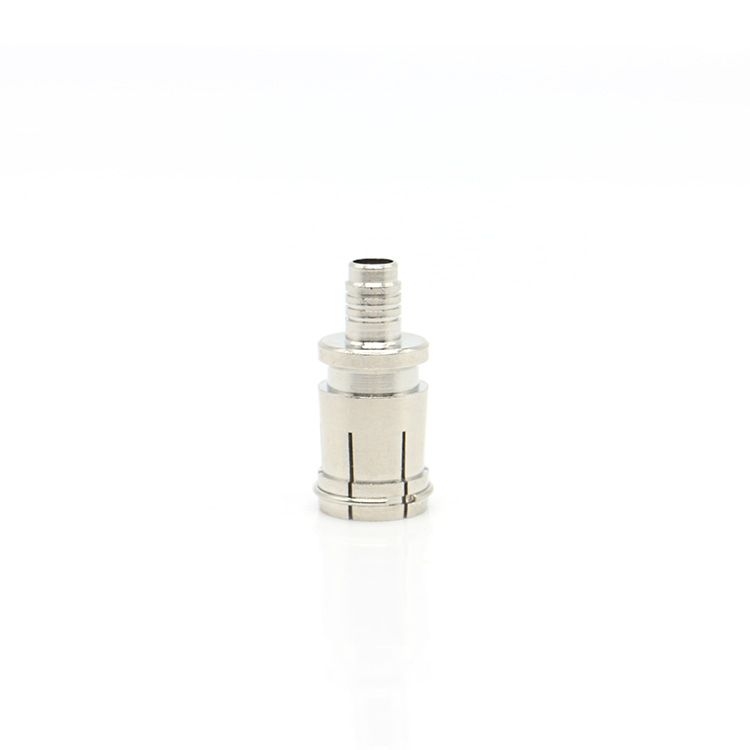

The F-head connector is known for its unique threaded connection design, which not only makes the connection process easy and fast, but also ensures the stability and reliability of the connection. It is particularly suitable for 75Ω cable distribution systems, such as CATV and broadcast television networks, to meet the needs of impedance matching and non-matching applications.

Impedance matching:

The characteristic impedance of the F-head connector is 75Ω, which matches the impedance of the coaxial cable, helping to reduce the reflection and attenuation of the signal during transmission, thereby improving the quality and stability of the signal transmission.

Wide applicability:

F-head connectors can be used interchangeably with similar products in the world, such as FL10 products, whose structure and performance are the same as F-type, but with M10X0.75 threads.

Durability:

The connector has excellent durability and can withstand multiple insertions without compromising performance. Its durability (mating) is usually up to 500 times or more.

Environmental adaptability:

The F-head connector can work normally in a wide temperature range (-40 ° C ~ +60 ° C), and has good vibration resistance (100m/s², 10 ~ 500Hz).
