Din Connector 9 Pin Female（360°）

DIN connectors are widely used in audio and video, medical, communication and other fields.
Number of cores:3pin,4pin,5pin,6pin,7pin,8pin,9pin,10pin,11pin,12pin,13pin,14pin.
Customised

0755-27065724

Online consultation

product details

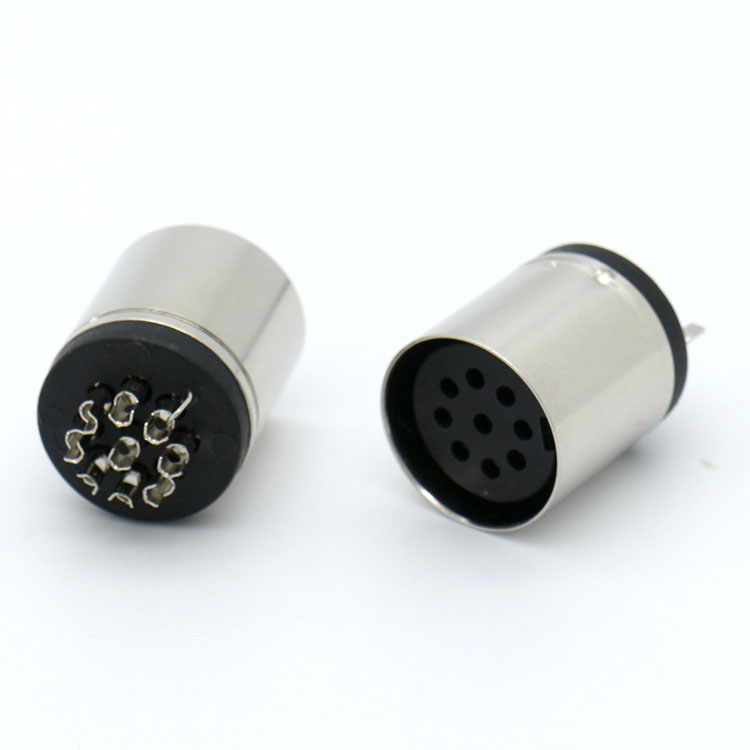

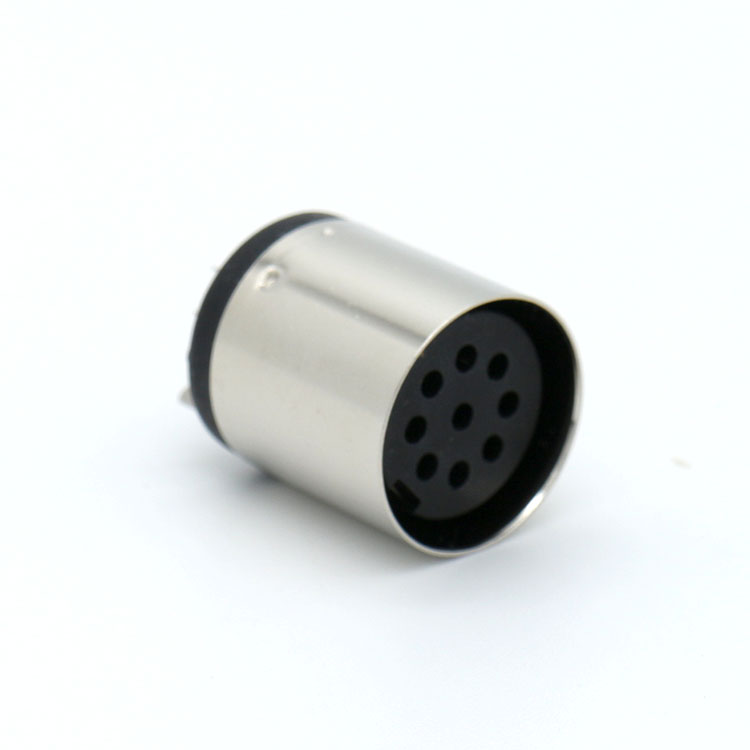

Din Connector 9 Pin Female（360°）

1.Service life:more than 5000 times

2.Plugging force:1.8-4.5KG

3.Withstanding voltage:500V AC

4.Insulation resistance::>100MΩ

5.Contact impedance:≤20mΩ

6.Current:2-5A

7.Voltage:50V DC

8.Temperature:-25°C-105°C

Material:

1. Outer tube: nickel-plated brass

2. Needle core: brass with nickel plating

3.Rubber core:PBT
